How Underpinning Can Prevent Costly Structural Issues

You probably don’t think about what supports your home until something shifts.

Hairline cracks appear, doors stick, and suddenly you’re wondering what’s happening beneath the floorboards.

That’s where underpinning comes in, a straightforward way to strengthen foundations before minor annoyances grow into expensive headaches.

Reading about real-world projects, like those handled by Geotech Built in Sydney, helps you see how timely action keeps structural drama at bay for good.

Underpinning Basics Overview

Think of underpinning as a medical brace for a tired foundation; it redistributes weight to healthier soil and keeps everything safe, level, and marketable for decades.

Why Buildings Settle

Foundations shift because soils shrink, swell, or wash away. The result is uneven support that stresses brickwork, framing, and mechanical lines running through the structure.

The Core Idea

Underpinning places new structural elements—concrete, steel, or resin—below or beside existing footings, transferring the load to soil layers with proven bearing capacity.

Modern Versus Traditional

Traditional mass-concrete pits still work, yet modern helical piles and expanding resins accomplish the same task faster, cleaner, and often without vacating the property.

Signs You Need Underpinning

Before calling a surveyor, walk through every room and around the exterior, noting movement, moisture, and misalignment; these clues often appear long before catastrophic failure.

• Zig-zag cracks: Jagged gaps following mortar lines signal footing movement. Widths wider than a pencil tip usually indicate active subsidence requiring professional confirmation.
• Sticking joinery: Doors or sashes scraping frames reflect racking walls, not carpentry issues. Seasonal swelling rarely jams openings throughout an entire floor simultaneously.
• Sinking floors: Carpet ripples or tile separations betray deflection in joists or slab settlement, especially across central rooms that once felt perfectly level.
• Rippling wallpaper: Creases without damp patches hint that the wall behind has shifted, stretching decorative coverings like an ill-fitting skin.
• Visible lean: Stand twenty feet away and sight along brick courses; a tilt you can spot unaided needs immediate structural attention.
• Crawl-space gaps: If daylight shines between foundation walls and floor framing, vertical displacement has already progressed beyond early warning stages.

Spotting even one listed symptom warrants further investigation. Professionals confirm movement with laser levels, moisture readings, and borehole testing before recommending any remedy.

Foundation Settlement Risks

Uneven settlement, called differential movement, amplifies structural stress exponentially; the longer it continues, the more money and safety you sacrifice.

Structural Integrity

Load paths divert around softened soil, concentrating forces on isolated walls, which can buckle or shear, creating life-safety hazards during storms or seismic activity.

Water Intrusion

Settlement opens joints that once kept moisture outside. Water seeps through cracks, promoting mold, rot, and corrosion of reinforcement, compounding repair budgets.

Financial Exposure

Insurers often exclude pre-existing settlement. Ignoring early signs risks diminished property value, higher premiums, and buyer skepticism at resale, reducing future negotiating power.

Legal Liabilities

Rental properties with known structural faults expose owners to litigation if tenants suffer injury or loss due to preventable foundation collapse or falling masonry.

Escalating Repair Costs

Fixing cosmetic cracks costs little; stabilizing an actively sinking footing demands underpinning, piering, and sometimes superstructure bracing—figures escalate every month you delay.

Soil Shift Problems

Soil is dynamic, not static; knowing how it behaves lets you anticipate trouble and underpin before damage spreads from one corner to the whole building.

• Clay shrink-swell cycles: Expansive clays grow when wet and contract during droughts, ratcheting foundations upward and downward year after year.
• Erosion channels: Downspouts discharging near footings scour supporting soils, leaving hidden voids that collapse beneath concentrated column loads.
• Organic decomposition: Peat or loose fill breaks down over time, reducing volume and compromising any footing not bearing on mineral soil layers below.
• Frost heave: Freezing water increases soil volume, lifting slabs in winter; thawing then drops them, creating cyclical fatigue on masonry joints.
• Seismic liquefaction: Earthquakes can temporarily turn saturated sands into fluid, allowing structures to sink abruptly if not underpinned to firm strata.

Understanding these mechanisms helps prioritize drainage, grading, and proactive underpinning strategies, preventing sudden surprises that turn minor flaws into expensive nightmares.

Structural Damage Indicators

Some warning signs masquerade as harmless blemishes, yet experienced inspectors read them like red flags waving over a compromised structural skeleton.

Stair-Step Cracks

Masonry cracks climbing in stair-step patterns across block or brick walls imply footing rotation or settlement concentrated under one portion of the building.

L-shaped Slab Fractures

Interior concrete with right-angle breaks usually forms over localized subsidence rather than temperature shrinkage, marking points where underpinning may localize repairs.

Racked Openings

Window frames distorted into trapezoids reveal lateral drift in load-bearing walls, often linked to differential footing movement rather than framing defects.

Separated Molding

Baseboards or crown trim pulling away indicate walls shifting relative to floors or ceilings, confirming that movement is active, not historic and dormant.

Torn Roofing Membranes

Settlement can twist rafters, stressing shingles or membrane seams; sudden leaks atop unexplained interior cracks suggest foundation problems working upward.

Key Underpinning Techniques

Choosing the right method depends on soil type, access, budget, and how quickly stabilization must occur to stop ongoing structural movement.

Mass Concrete Piers

Contractors excavate sequential pits beneath footing segments, pour reinforced concrete, then grout gaps, a proven solution for heavy masonry in stable soils.

Helical Piles

Screw-like steel shafts twist into load-bearing strata, offering rapid installation with minimal vibration—ideal for tight urban sites and sensitive historic facades.

Mini-Piled Needles

Small-diameter drilled piles transfer loads deep without large excavation, suiting sites with poor surface soils and limited headroom inside basements.

Resin Injection

Expanding polyurethane fills voids and lifts slabs gently, a low-mess option for lighter structures or floors needing millimeter-precise releveling.

Combined Systems

Engineers often blend methods—helical piles for primary loads, resin for slab voids—tailoring support while controlling costs and site disruption.

Step by Step Process

Once you decide to underpin, following a structured roadmap keeps the project efficient, transparent, and compliant with local building regulations.

• Engineer assessment: A licensed engineer documents movement, performs soil borings, and designs a customized underpinning scheme backed by calculations for permits.
• Site preparation: Utilities are located, drainage diverted, and protective barriers erected to safeguard occupants, landscaping, and adjacent properties.
• Installation phase: Crews excavate, drive piles, or inject resin according to plan, recording torque or pressure readings to verify design loads.

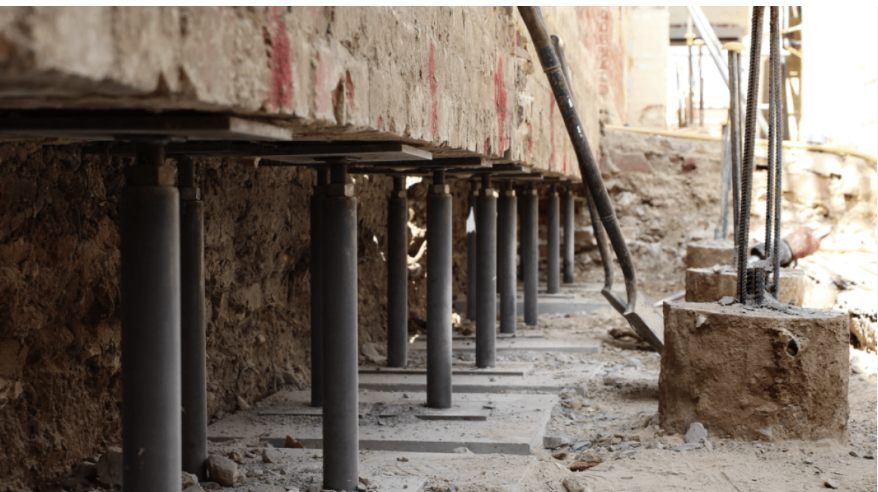

• Load transfer: Hydraulic jacks or grout coupling shift building weight onto new supports, halting settlement and potentially re-leveling distorted frames.
• Backfill and finish: Excavations are compacted, waterproofing restored, and interior finishes repaired, leaving the home stronger and visually refreshed.

Document each milestone with photos and torque logs; these records prove workmanship quality and underpin future warranty or resale conversations with confidence.

Benefits And Value

Beyond simply stopping settlement, underpinning unlocks financial and lifestyle advantages that often outweigh the temporary inconvenience of construction work.

Strengthened Equity

A stabilized foundation reassures lenders and buyers, eliminating price reductions demanded for perceived risk, thereby protecting and often boosting property appraisals.

Usable Space

Lowering a basement during underpinning can create full-height living areas, adding square footage far cheaper than building new above-ground additions.

Energy Efficiency

Fresh insulation, vapor barriers, and sealed cracks introduced during underpinning improve thermal performance, cutting heating and cooling costs year-round.

System Upgrades

Open access beneath floors lets you reroute plumbing, add radiant heat, or rewire for smart-home tech without further demolition after underpinning concludes.

Peace of Mind

Knowing the ground beneath is secure removes the nagging worry of sudden wall cracks, jamming doors, or insurance exclusions for ongoing movement.

Mistakes To Avoid

Underpinning fails only when homeowners or contractors skip critical steps; avoiding these errors keeps your investment safe and compliant with codes.

• Skipping soil tests: Designing supports without geotechnical data invites under-engineered solutions that may shift again once heavy rains return.
• Choosing price alone: The cheapest bid often omits monitoring, warranties, or qualified supervision, eroding savings when callbacks become inevitable.
• Ignoring drainage: Stabilized footings still fail if gutters leak or grading slopes inward; manage water to protect your new supports.
• Partial repairs: Treating only one corner leaves other areas vulnerable, causing a see-saw effect that can crack freshly repaired walls.
• Delaying permits: Unpermitted work complicates insurance claims and resale; inspectors are allies ensuring safety, not obstacles slowing progress.

Secure Your Base

Act early; underpinning costs less than rebuilding. When you notice cracking, sticking doors, or uneven floors, measure movement, consult engineers, and schedule corrective work before forces compound. If your property sits on Sydney’s reactive clays, review foundation repair options to compare methods, timelines, and compliance duties. Prompt knowledge guides budgets.
