Soldering is an essential skill for anyone interested in electronics. It allows you to connect components to a printed circuit board (PCB), ensuring a stable and efficient circuit. Whether you’re building your own devices, repairing existing ones, or simply exploring the fascinating world of electronics, learning to solder is a fundamental step. Companies like OurPCB provide high-quality PCBs that are ideal for both beginners and advanced projects, making it easier to bring your ideas to life. With practice, soldering becomes a rewarding skill that empowers you to tackle various electronic challenges with confidence.
If you’re new to soldering, don’t worry. While it might seem intimidating at first, soldering is a skill that anyone can learn with the right guidance and tools. This guide will walk you through the basics step by step, helping you get started with confidence. From understanding the tools you need to mastering the techniques for creating reliable connections, this tutorial will serve as your roadmap to becoming proficient at soldering.

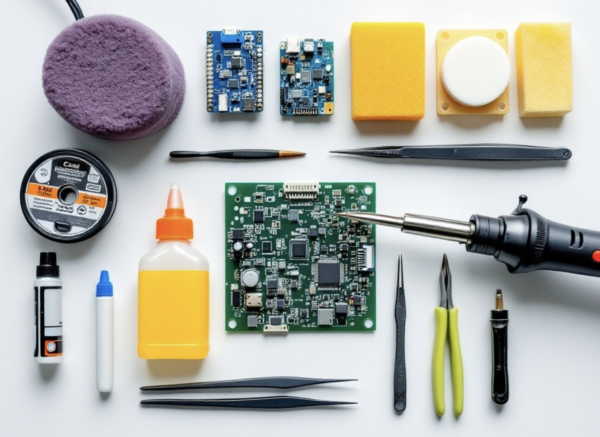

What You Need to Get Started
Before you begin, gather the necessary tools and materials. Here’s what you’ll need:
Tools:
- Soldering Iron: A basic soldering iron with adjustable temperature is ideal for beginners. Choose a model that feels comfortable in your hand and heats up quickly, as this will make the soldering process much smoother and more efficient.
- Soldering Stand: Holds the soldering iron safely when not in use, preventing accidents and keeping your workspace organized.
- Solder Wire: Choose a lead-free or rosin-core solder wire for better results and safety. The diameter of the solder wire should match the size of the joints you’re working on.
- Wire Cutters: For trimming excess wire and solder, these are essential to keep your PCB neat and functional.
- Tweezers: To hold small components in place, especially when working with surface-mount devices.
- Desoldering Pump or Wick: For removing excess solder or fixing mistakes. These tools are lifesavers when you need to correct an error quickly and cleanly.
Materials:
- Printed Circuit Board (PCB): The board you’ll be working on, which contains the copper traces to connect components.
- Electronic Components: Resistors, capacitors, diodes, and other components you’ll be soldering. Ensure you have the correct values as per your circuit design.
- Flux: Helps solder flow smoothly and ensures a strong bond by cleaning the surfaces of oxidation.
- Isopropyl Alcohol: For cleaning the PCB and removing any flux residue after soldering.
- Cleaning Brush: To remove any debris and make your work neat and professional.
Safety Precautions
Soldering involves heat and potentially hazardous fumes. Keep these safety tips in mind to ensure a safe and pleasant experience:
- Work in a well-ventilated area to avoid inhaling fumes, which can be harmful to your health over time.
- Wear safety glasses to protect your eyes from splashes of molten solder or flux.
- Keep flammable materials away from your workspace, as the soldering iron gets extremely hot.
- Handle the soldering iron with care to avoid burns. Always assume the tip is hot, even if it doesn’t look glowing.
- Always turn off and unplug the soldering iron when not in use to prevent accidents or damage.
Step-by-Step Guide to Soldering a PCB
Now that you’re prepared, let’s dive into the process of soldering a PCB effectively and efficiently.
Step 1: Prepare the Workspace
Preparing your workspace is the first step in ensuring a smooth soldering process. Start by choosing a clean, flat surface for your work. A clutter-free workspace reduces the chance of mistakes and makes it easier to focus on the task at hand. Arrange your tools and materials within easy reach, ensuring you have everything you need at your fingertips. Proper lighting is essential, so consider using a magnifying lamp for better visibility, especially when working on small or detailed components.
Step 2: Understand the PCB Layout
Understanding the layout of your PCB is crucial for accurate soldering. Examine the PCB to identify where each component should go, as most PCBs have labeled slots for components. Refer to the circuit diagram if you’re unsure about placement, and take the time to understand the flow of the circuit. Double-check the orientation of components, particularly polarized ones like diodes and electrolytic capacitors, to ensure they are placed correctly and avoid errors during operation.
Step 3: Insert Components
Inserting components into the PCB is the next step. Begin by placing the components through their designated holes on the PCB, starting with the smallest and simplest components such as resistors. This makes handling easier and keeps your work organized. Bend the leads slightly to hold the component in place until it is soldered, ensuring stability. Pay special attention to the orientation of polarized components, as reversing them can cause failures or damage the circuit.
Step 4: Heat the Joint
Heating the joint is a critical step for ensuring a solid connection. Plug in the soldering iron and allow it to heat up to the appropriate temperature, typically around 350°C (660°F). Hold the soldering iron’s tip against both the component lead and the PCB pad for a few seconds to heat both surfaces evenly. Avoid holding the iron on the joint for too long, as excessive heat can damage the PCB or the components. The goal is to prepare the surfaces so that the solder flows easily.
Step 5: Apply Solder
Applying solder requires precision and practice. Touch the solder wire to the joint rather than the soldering iron itself. The heat from the joint will melt the solder, allowing it to flow and form a solid connection. Remove the soldering iron and let the joint cool naturally. A properly soldered joint should have a shiny, cone-shaped appearance. If the joint looks dull or uneven, it may indicate a cold solder joint, which can cause connection issues. Practicing on scrap PCBs can help you perfect this technique.
Step 6: Trim Excess Leads
Once the solder has cooled, it’s time to trim the excess leads. Use wire cutters to carefully snip off the leads sticking out from the PCB. This step not only makes the board look neat and professional but also prevents accidental short circuits. Hold the cutters at an angle to avoid damaging the solder joint while trimming. Taking your time during this step ensures a clean and polished result.
Step 7: Inspect and Test
The final step involves inspecting and testing your work. Carefully inspect each solder joint for quality, looking for any cold joints or excess solder that might create problems. Reheat and add more solder to any questionable joints if necessary. Clean the PCB with isopropyl alcohol and a brush to remove flux residue, enhancing both functionality and appearance. Finally, test the circuit using a multimeter to check for continuity and proper voltage levels, ensuring the circuit works as intended.
Troubleshooting Soldering Issues
If your circuit doesn’t work, follow these steps to identify and fix the problem:
- Check Connections: Ensure all joints are properly soldered and there are no cold joints. Cold joints can often be identified by their dull, grainy appearance.
- Look for Bridges: Inspect for accidental solder bridges between adjacent pads, as these can cause short circuits.
- Verify Components: Make sure all components are correctly placed and oriented according to the circuit diagram.
- Re-solder: Reheat any questionable joints and apply more solder if needed. Be cautious not to overheat nearby components.
Conclusion
Soldering PCBs is a valuable skill that opens up a world of possibilities in electronics. With the right tools, materials, and a bit of practice, you can create reliable and functional circuits. Start with simple projects and gradually move on to more complex designs. Remember, patience and attention to detail are key to mastering this skill. Take your time, learn from your mistakes, and enjoy the process of bringing your electronic projects to life!
